Model:Reference Phono
Features:
- ● Advanced reference-grade vacuum tube phono stage amplifier
- ● Supports moving coils (MC) and moving magnet (MM) cartridges
- ● MC cartridge impedance is adjust ohms one by one, up to 2000 levels, from 10 Ω to 2000 Ω

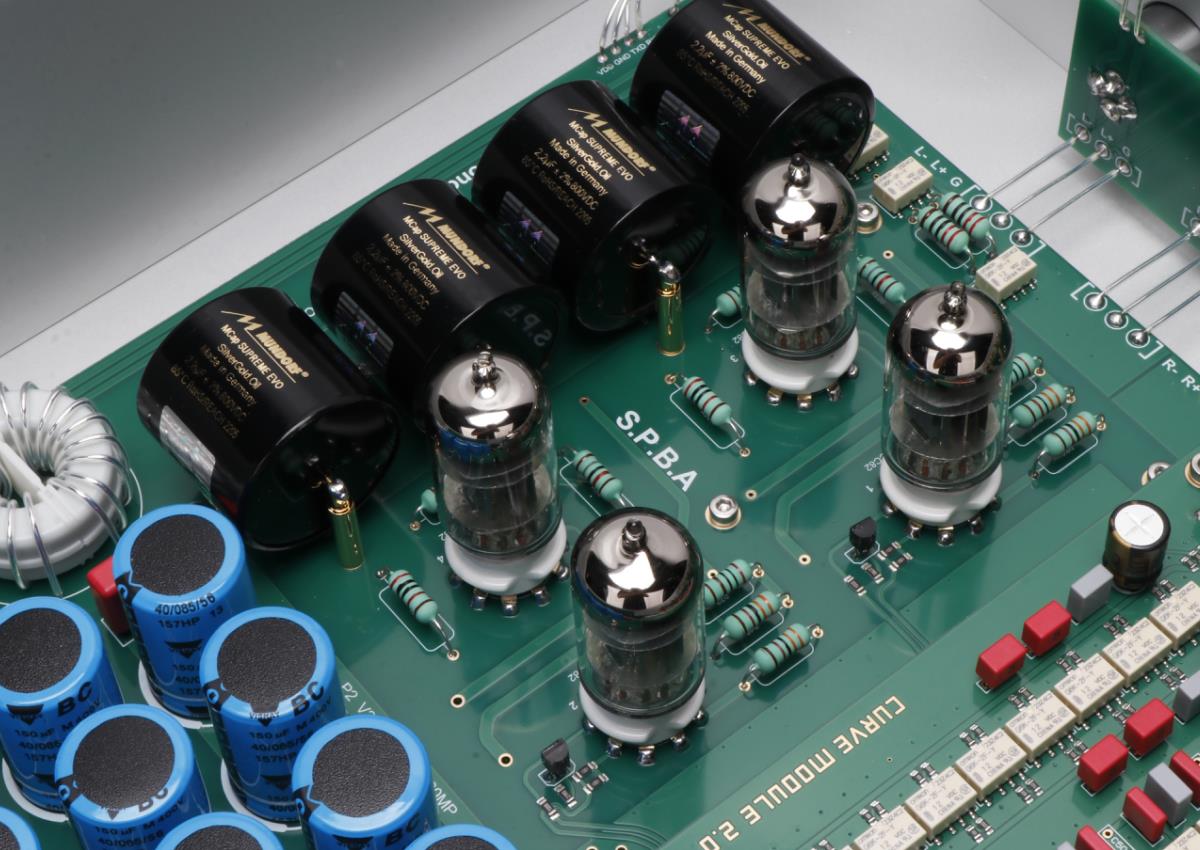

- ● Using 4 high-end Germany Mundorf Mcap SUPREME EVO Silver Gold Oil capacitors

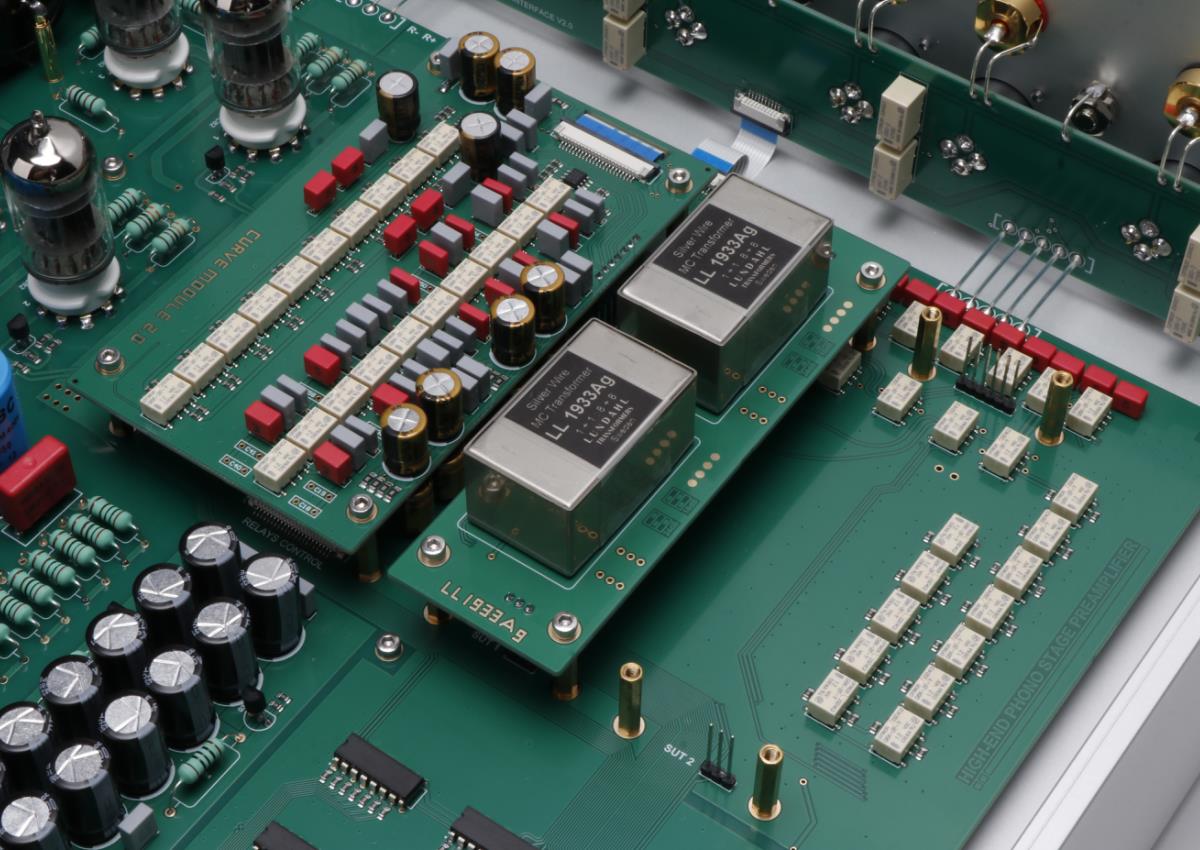

- ● Comes standard with Built-in very High-end Lundahl LL1933Ag MC step-up transformer

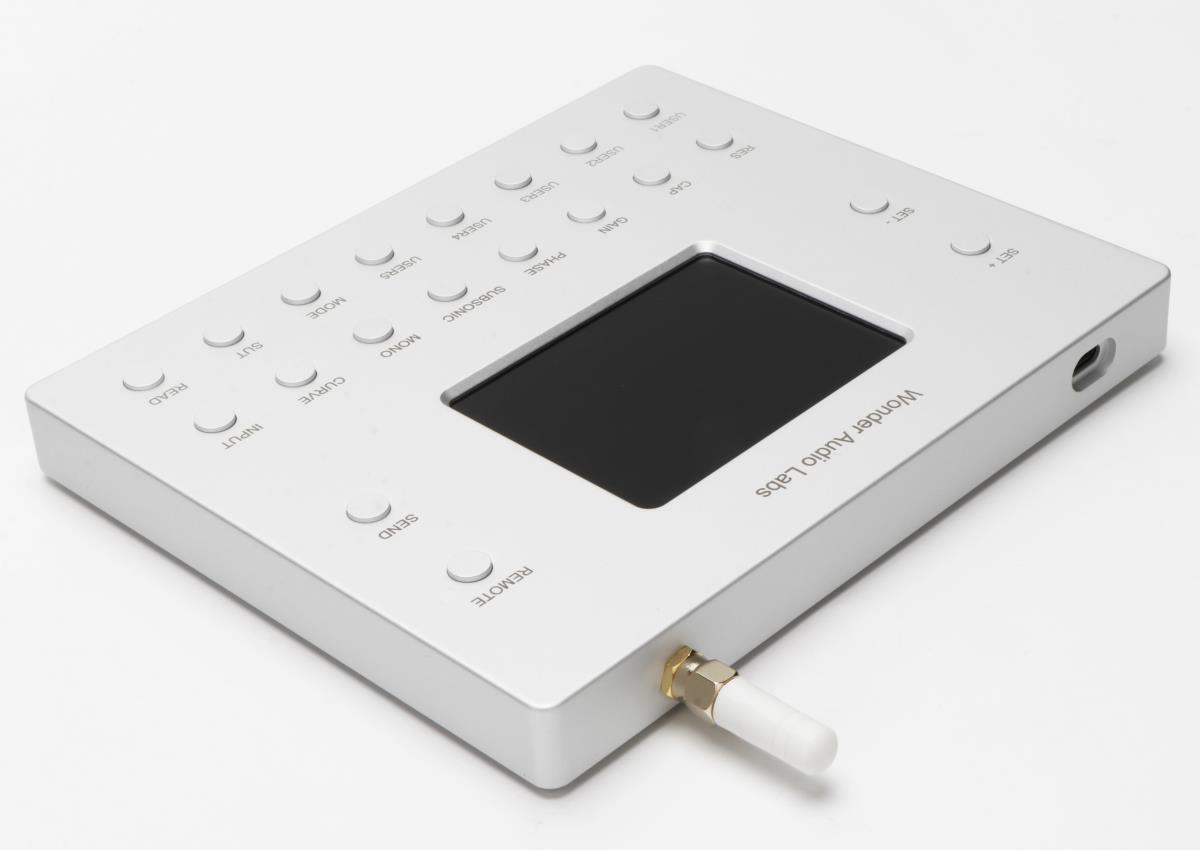

- ● 2.4G communication remote control, with global parameters adjusted simultaneously
- ● Supports 100 composite EQ curves, 2 RIAA modules (passive and active)
Technical Specifications:

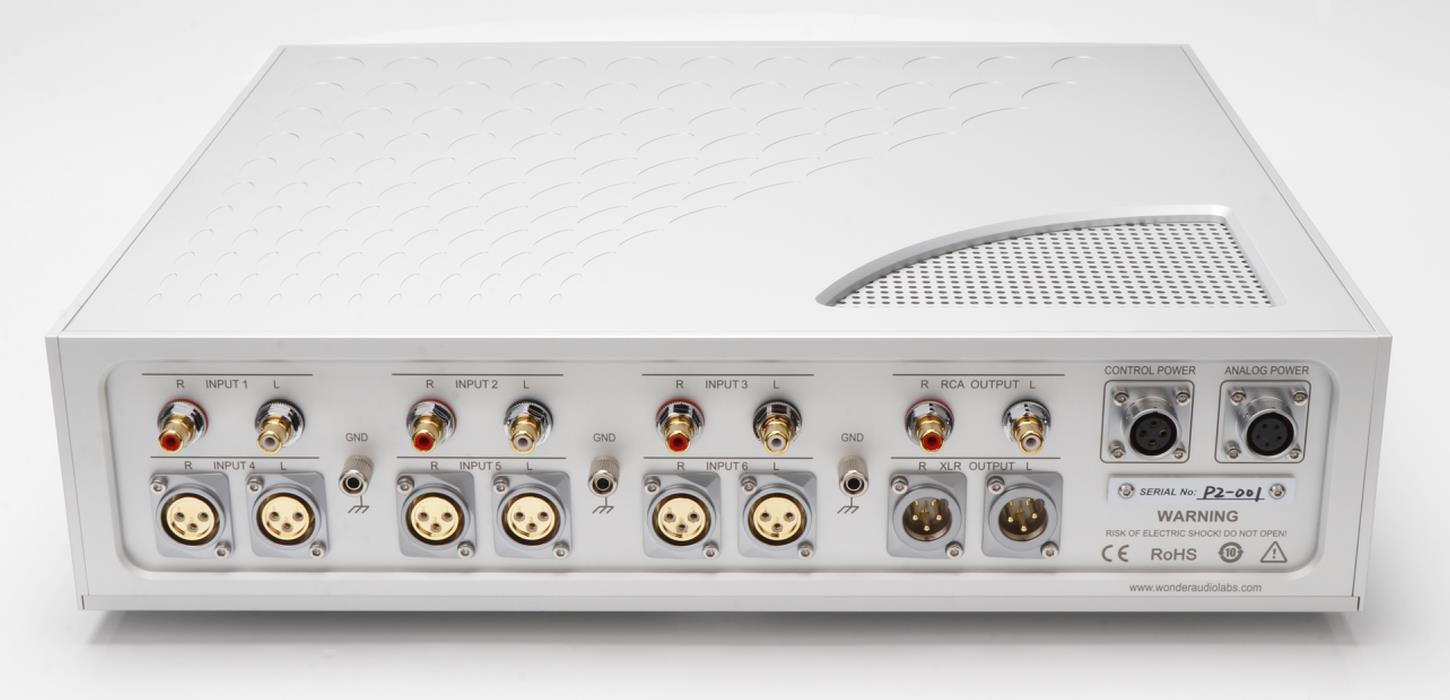

Inputs
6 inputs, 3 x RCA, 3 x XLR, All support MM & MC cartridge
Outputs
1 x RCA, 1 x XLR
Frequency response
20 Hz -- 20k Hz
Toltal Harmonic Disrortion
< 0.02% max @1kHz
Signal to noise ratio
100 dB
Dynamic range
110 dB
Input impedence
2000+ options : 10Ω -- 2000Ω for MC, 47kΩ for MM
Input capacitance
32 options : 0pF – 1800pF
Curves
Active RIAA, Passive RIAA, 100 OLD EQ curve
Gain
40dB,42dB,44dB,46dB, 48dB,50dB, for MM, 55dB,60dB, 62dB, 64dB, 66dB,70dB for MC
Vacuum tube
4 x ECC82 / 12AU7
Power supply
AC 110V / 220V, 50 -- 60Hz
Power consumption
40 Watts
Weight
> 12.5 kg - net
Dimensions
435mm W | 100mm H | 400mm D
Related information download :
Details reveal :
- ● Mono/Stereo mode
- ● Pure silver internal wiring
- ● Pure Silver Inductive Filter
- ● High quality parts
- ● Exquisite processing technology
- ● Proprietary single pole balanced amplifier circuit
